600 K060CTN239AEZ Part Numbering System

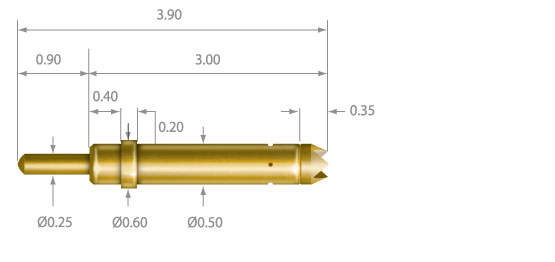

Single plunger actuation contact pin. Four piece design (plunger x2; spring; barrel) with one plunger permanently fixed.

Designed for ≥ 0.75mm pitch devices.

Order



Mechanical Specifications

Device Pitch 0.75mm pitch or above
Test Height 3.20mm
Force at Operating Position 32gf at 0.70mm
Maximum Travel 0.9mm, 40gf
Operating Temperature -20°C to 120°C
Life Expectancy 500,000 cycles

Material

Device Plunger Hardened Carbon Steel Gold Plated
Barrel Brass Gold Plated
Spring Music Wire Gold Plated
Bottom Plunger Hardened Beryllium Copper Gold Plated

Electrical Specification

Contact Resistance <40mOhm
Current Carrying Capacity 3.0Amps Continuous
Bandwith 7.6GHz@-1dB







All specifications are subject to change without notice
