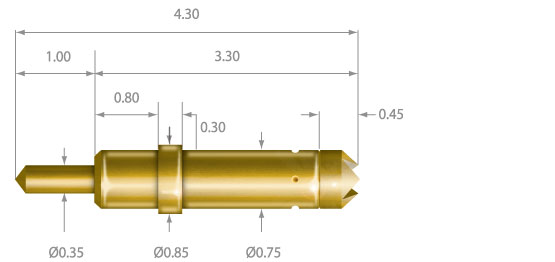

600 K085CTN243AEZ Part Numbering System

Single plunger actuation contact pin. Four piece design (plunger x2; spring; barrel) with one plunger permanently fixed.

Designed for ≥ 1mm pitch devices.

Order



Mechanical Specifications

Device Pitch 1.0mm pitch or above
Test Height 3.50mm
Force at Operating Position 33gf at 0.80mm
Maximum Travel 1.00mm, 39gf
Operating Temperature -20°C to 120°C
Life Expectancy 500,000 cycles

Material

Device Plunger Hardened Carbon Steel Gold Plated
Barrel Phosphor Bronze Gold Plated
Spring Music Wire Gold Plated
Bottom Plunger Hardened Beryllium Copper Gold Plated

Electrical Specification

Contact Resistance <50mOhm
Current Carrying Capacity 1.5Amps Continuous
Bandwith 12GHz@-1dB







All specifications are subject to change without notice
