600 D030N1N229AEP Part Numbering System

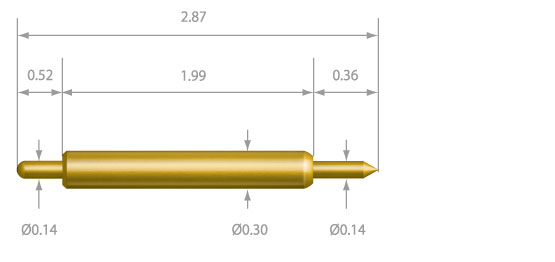

Double sided plunger actuation contact pin. Four piece design (plunger x2; spring; barrel).

Designed for ≥ 0.4mm pitch devices.

Order



Mechanical Specifications

Device Pitch 0.4mm pitch or above
Test Height 2.47mm
Force at Operating Position 25gf at 0.4mm
Maximum Travel 0.5mm, 28gf
Operating Temperature -20°C to 120°C
Life Expectancy 500,000 cycles

Material

Device Plunger Hardened Carbon Steel Gold Plated
Barrel Phosphor Bronze Gold Plated
Spring Music Wire Gold Plated
Bottom Plunger Hardened Beryllium Copper Gold Plated

Electrical Specification

Contact Resistance <80mOhm
Current Carrying Capacity 1.0Amps Continuous
Bandwith 10GHz@-1dB







All specifications are subject to change without notice
