600 D038C4N157EEZ Part Numbering System

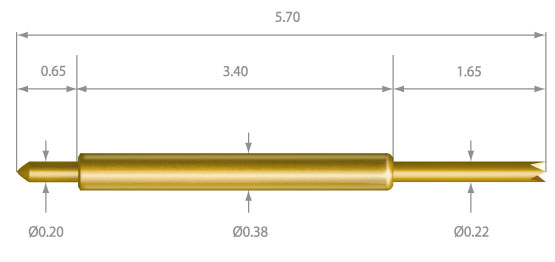

Single plunger actuation contact pin. Four piece design (plunger x2; spring; barrel) with one plunger permanently fixed.

Designed for ≥ 0.5mm pitch devices.

Order



Mechanical Specifications

Device Pitch 0.5mm pitch or above
Test Height 4.95mm
Force at Operating Position 31gf at 0.75mm
Maximum Travel 0.9mm, 34gf
Operating Temperature -20°C to 120°C
Life Expectancy 500,000 cycles

Material

Device Plunger Hardened Carbon Steel Gold Plated
Barrel Phosphor Bronze Gold Plated
Spring Music Wire Gold Plated
Bottom Plunger Hardened Beryllium Copper Gold Plated

Electrical Specification

Contact Resistance <50mOhm
Current Carrying Capacity 1.5Amps Continuous
Bandwith 10GHz@-1dB







All specifications are subject to change without notice
