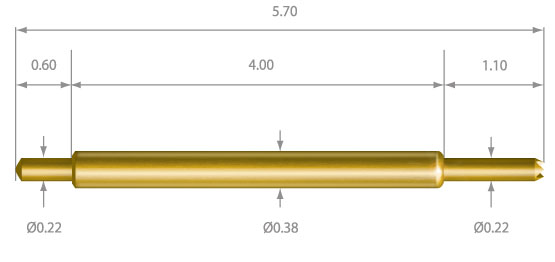

600 D038CTN257AEZ Part Numbering System

Double sided plunger actuation contact pin. Four piece design (plunger x2; spring; barrel).

Designed for ≥ 0.5mm pitch devices.

Order



Mechanical Specifications

Device Pitch 0.5mm pitch or above
Test Height 5.05mm
Force at Operating Position 35gf at 0.65mm
Maximum Travel 0.98mm, 39gf
Operating Temperature -20°C to 120°C
Life Expectancy 500,000 cycles

Material

Device Plunger Hardened Carbon Steel Gold Plated
Barrel Phosphor Bronze Gold Plated
Spring Music Wire Gold Plated
Bottom Plunger Hardened Beryllium Copper Gold Plated

Electrical Specification

Contact Resistance <60mOhm
Current Carrying Capacity 3.0Amps Continuous
Bandwith 9.37GHz@-1dB







All specifications are subject to change without notice
