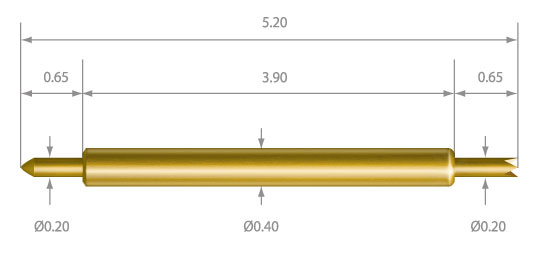

600 D040C4N152AEZ Part Numbering System

Double sided plunger actuation contact pin. Four piece design (plunger x2; spring; barrel).

Designed for ≥ 0.65mm pitch devices.

Order



Mechanical Specifications

Device Pitch 0.65mm pitch or above
Test Height 4.60mm
Force at Operating Position 42gf at 0.60mm
Maximum Travel 0.85mm, 53gf
Operating Temperature -20°C to 120°C
Life Expectancy 500,000 cycles

Material

Device Plunger Hardened Carbon Steel Gold Plated
Barrel Phosphor Bronze Gold Plated
Spring Music Wire Gold Plated
Bottom Plunger Hardened Beryllium Copper Gold Plated

Electrical Specification

Contact Resistance <60m0hm
Current Carrying Capacity 2.0Amps Continuous
Bandwith 15GHz@-1dB







All specifications are subject to change without notice
