600 D050C4CT34AEZ Part Numbering System

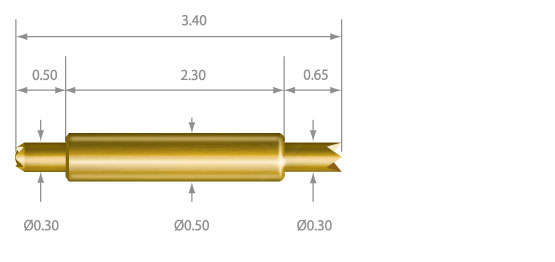

Double sided plunger actuation contact pin. Four piece design (plunger x2; spring; barrel).

Designed for ≥ 0.65mm pitch devices.

Order



Mechanical Specifications

Device Pitch 0.65mm pitch or above
Test Height 3.10mm
Force at Operating Position 25gf at 0.30mm
Maximum Travel 0.6mm, 40gf
Operating Temperature -20°C to 120°C
Life Expectancy 500,000 cycles

Material

Device Plunger Hardened Carbon Steel Gold Plated
Barrel Brass Gold Plated
Spring Music Wire Gold Plated
Bottom Plunger Hardened Beryllium Copper Gold Plated

Electrical Specification

Contact Resistance <60mOhm
Current Carrying Capacity 1.5Amps Continuous
Bandwith 13GHz@-1dB







All specifications are subject to change without notice
